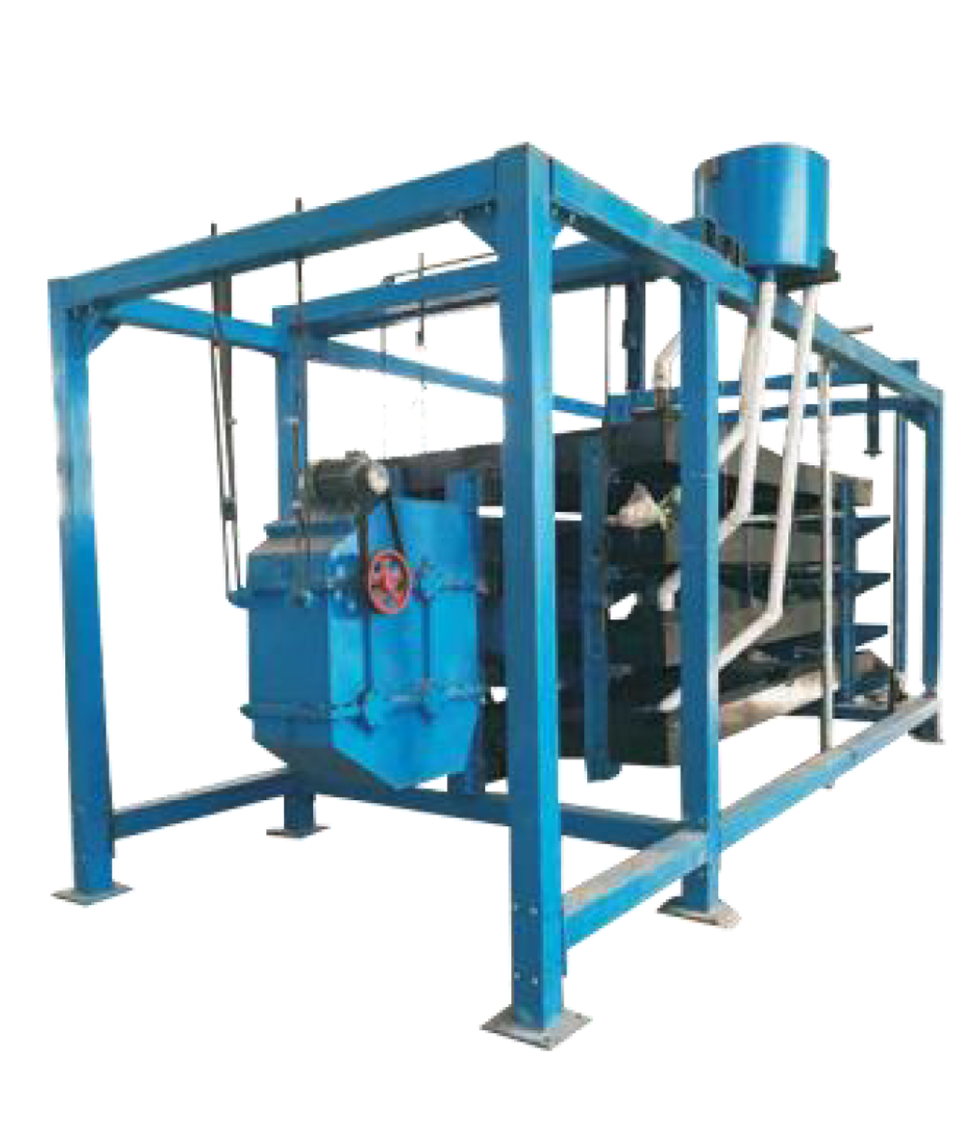

Multideck Lift Type Shaking Table

3、4层摇床

Advantages and Charcteritics

1.lngenicus structure of inertial gearing self balanced vertical force component No vertical jump because no vertical vibrating force. It can be installed on the building floor,or on the bracket

2.Lift type minimal consumption of friction reduce vibration and energy saving non-required bulky base,quick and flexible installation

3.It zdopts fiberglass deck with wear-resistant layer wear-resistant,wateproof anti-dry,anticorrosion,non-deformed less maintenance long service life

4.The deck installed in an uniform frame layver-by-layer easy,to install and unload increase processing capacity per unit area Replace different weight blocks can change the strcke of shaking table

5.It adopts variable-frequence govemor,easily change frequency of stroke to adapt different material with different partide and feture.

Technical Parameters
Model 3LYG 4LYG
Deck Model Coarse ore Deck Fine sandDeck Slime Deck Coarse ore Deck Finee sandDeck Slime Deck
Beneficiation area(㎡) 7.6X3 7.6X3 7.6X3 7.6X4 7.6X4 7.6X4
Desk Size 4500 4500 4500 4500 4500 4500 4500
Transmission end width(mm) 1850 1850 1850 1850 1850 1850
Concentrate end width(mm) 1550 1550 1550 1550 1550 1550
Maximum feeding size(mm) 2 0.5 0.074 2 0.5 0.074
Capacity(t/h) 4-5 2-3 1.5-2.5 5-6.5 3-5 2-3.5
Feeding density(%) 20-30 18-25 15-20 20-30 18-25 15-20
Stroke(mm) 8、10、12、15、18、20、22
Frequency of stroke(r/min) 270-60(variable-frequence)
Water Consumption (t/h) 0.7-1 0.4-0.7 0.4-0.7 0.7-1 0.4-0.7 0.4-0.7
Groove shape of deck Available Rectangular,Saw-tooth,Triangle
Power(Kw) 1.5KW Dimensions(mm) 6330*2450*2660
