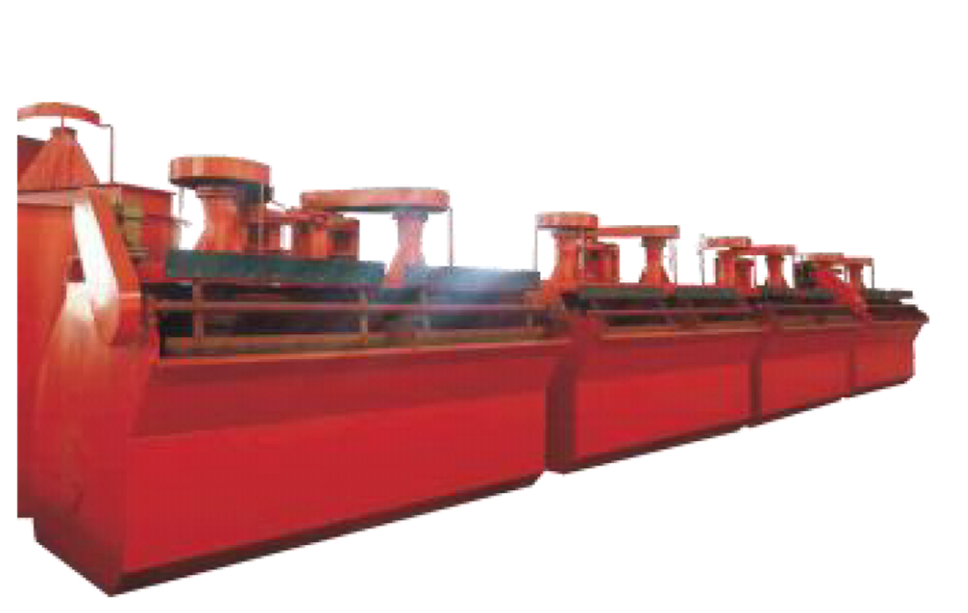

SF series flotation cell can absorb air and pulp，Its fore-raking tank can ensure slurry and foanms that will not sink and foams can retum and ensure the double-blade impeller to stir the coarse ore at bottom well.
| Technical Parameters | |||||||
|---|---|---|---|---|---|---|---|
| Model | Impeler Diameter(mm) | Impeler Speedt (r/min) | Capacity(m/min) | Motor Power(kw) | Impeler Power(kw) | Effective Voiume(m) | Cell Dimersion(mm) |
| SF-0.15 | 200 | 536 | 0.06-0.18 | 1.5 | 0.55 | 0.15 | 500*500*600 |
| SF-0.37 | 296 | 386 | 0.2-0.4 | 1.5 | 0.55 | 0.37 | 700*700*750 |
| SF-1.2 | 450 | 312 | 0.6-1.2 | 5.5 | 1.1 | 1.2 | 1100*1100*1100 |
| SF-2.8 | 550 | 268 | 1.5-3.5 | 11 | 1.5 | 2.8 | 1700*1600*1150 |
| SF-4 | 650 | 220 | 2-4 | 15 | 1.5 | 4 | 1850*2050*1200 |
| SF-8 | 760 | 191 | 4-8 | 30 | 1.5 | 8 | 2200*2900*1400 |
| SF-10 | 760 | 191 | 5-10 | 30 | 2.2 | 10 | 2200*2900*1700 |
| JJF-4 | 410 | 305 | 2-5 | 11 | 1.5 | 4 | 1600*2150*1250 |
| JJF-8 | 540 | 233 | 4-10 | 22 | 1.5 | 8 | 2200*2900*1400 |
| JJF-10 | 540 | 233 | 4-12 | 22 | 2.2 | 10 | 2200*2900*1700 |
