XB series Agitating Tank

XB系列搅拌槽

Introduction

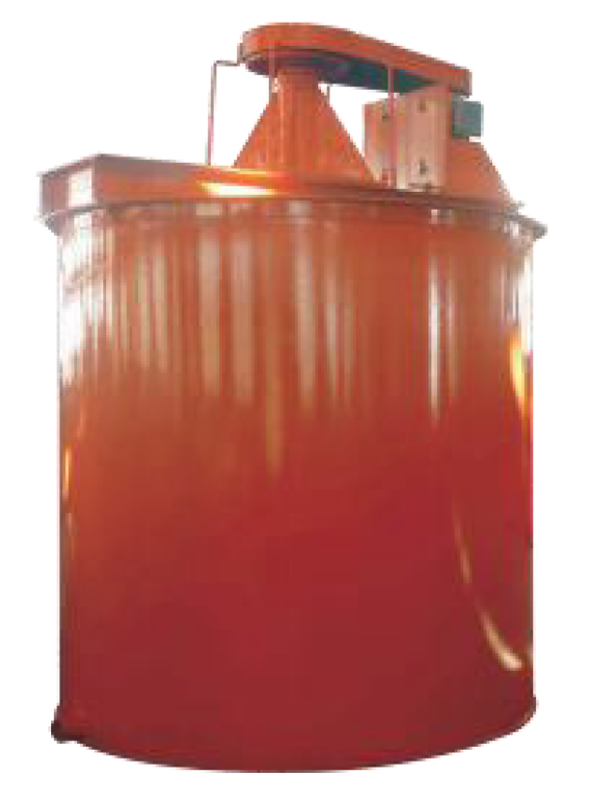

XB series mining agitating tank, suitable for vaious kinds of ore pulp agitation, is manly appled for varlous minerals ore pulp agitation before flotation or gravity separation in the mineral processing fiow so as to homogeneously mix the chemical agents or ore pulp. It can be also used for other non-metallic mineral pulp agitation.The tank is appicable for pulp density ≤30% and solid portide size ≤1mm.

The agitation tank is mainiy consist of tank body. verticai shaft recycling barrel, drive frame, and moton The motor drives the belt wheel on the top of the vertical shaft through the V-belt, which drives the impeller at the bottom of the vertical shaft to rotate,and thus the pulp is agitated homogeneously.

Technical Parameters
Model XB-500 XB-1000 XB-1500 XB-2000 XB-2500 XB-3000
Effective Volume(m³) 0.124 0.58 2.2 5.46 11.2 19.1
Diameter (mm) 150 240 400 550 650 700
Rotation Speed (rpm) 1000 530 320 230 280 210
Motor Model Y100L-4 Y132S-6 132M-6 Y160M-6 180L-6 Y225S-8
Power(kw) 2.2 4.6 5.5 7.5 15 18.5
Tank Internal Size Diameter (mm) Φ500 Φ1000 Φ1500 Φ2000 Φ2500 Φ3000
Height(mm) 750 1000 1500 2000 2500 3000
Dimension L (mm) 670 1130 1750 2380 3028 3610
W (mm) 351 1130 1642 2162 2640 3266
H (mm) 1286 1491 2186 2846 3543 4326
Weight(t) 0.375 0.685 1.2 1.65 3.462 4.292
Notes：
The motor power for models larger than XB-1500(including XB-1500)will be enlarged as per the actual pulp density and capacity.
