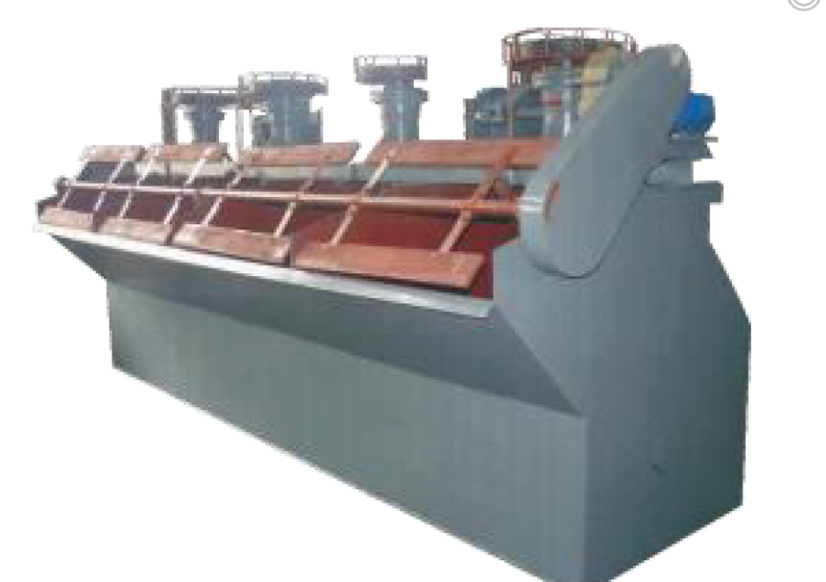

XJK(type A)series flotation machine is old self-suction flotation machine.It´s with a great performance, especially for fine ore.
It´s with big inflating volume,big capacity,simple structure,easy structure and maintenance,There are rubber or PU lined impellers and cover plate.
| Technical Parameters | |||||||
|---|---|---|---|---|---|---|---|
| Model | XJK-0.13(1A) | XJK-0.23(2A) | XJK-0.35(3A) | XJK-0.62(4A) | XJK-1.1(5A) | XJK-2.8(6A) | |
| Deck Model(mm) | 200 | 250 | 300 | 350 | 500 | 600 | |
| Rotating Speed (rpm) | 593 | 500 | 483 | 400 | 330 | 280 | |
| Capacity（m/mi） | 0.05-0.16 | 0.12-0.28 | 0.178-0.4 | 0.3-0.9 | 0.6-1.6 | 1.5-5 | |
| Engine of Impeler | Model | Y90L-4 | Y100L-4 | Y90L-4 | Y1342S-6 | Y132M-6 | Y160L-6 |
| Power(kw) | 1.5 | 1.5 | 5.5 | 11 | |||
| Engine of Scraper | Model | Y80L-4 | Y80L-4 | Y80L-4 | Y90L-6 | Y90S-4 | Y90S-4 |
| Power(kw) | 0.55 | 0.55 | 0.55 | 1.1 | 1.1 | 1.1 | |
| Feeding density(%) | 20-30 | 18-25 | 15-20 | 20-30 | 18-25 | 15-20 | |
