槽式洗矿机

Introduction

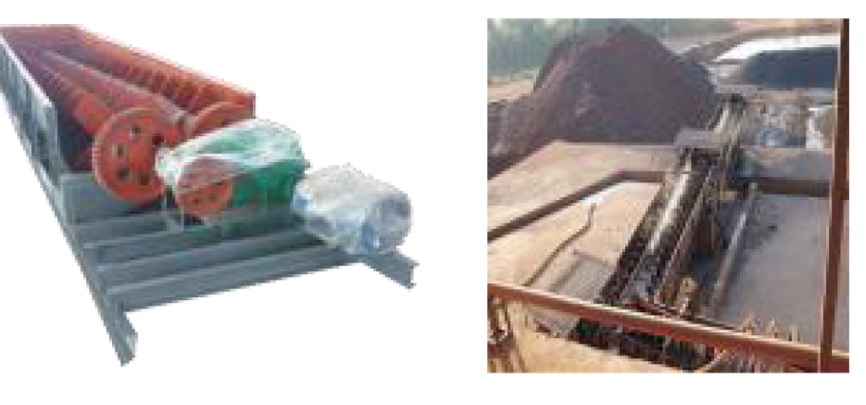

Log washer is mainly used for clay minerals washing and desliming so as to improve the dressing performance in the next process,It ia often used for washing ores such as Manganese ore,Limestone,Tungsten ore,Tin ore and Silica sand ore.

Technical Parameters
Model Spiral Diameter (mm) Rotating Speed(r/min) Feeding Size(mm) Angle of lnclination(°) Capacity(t/h) Power(kw)
2RXL320 Ф320X3200 28 ≤30 ≤12 10 4
2RXL400 Ф400X4600 23 ≤30 ≤12 20 5.5
2RXL540 Ф540X4600 23 ≤30 ≤12 25 7.5
2RXL750 Ф750X7600 22.7 ≤70 ≤12 50 15
2RXL800 Ф800X7600 22 ≤70 ≤12 60 18.5
2RXL914 Ф914X7600 21 ≤70 ≤12 70 22
