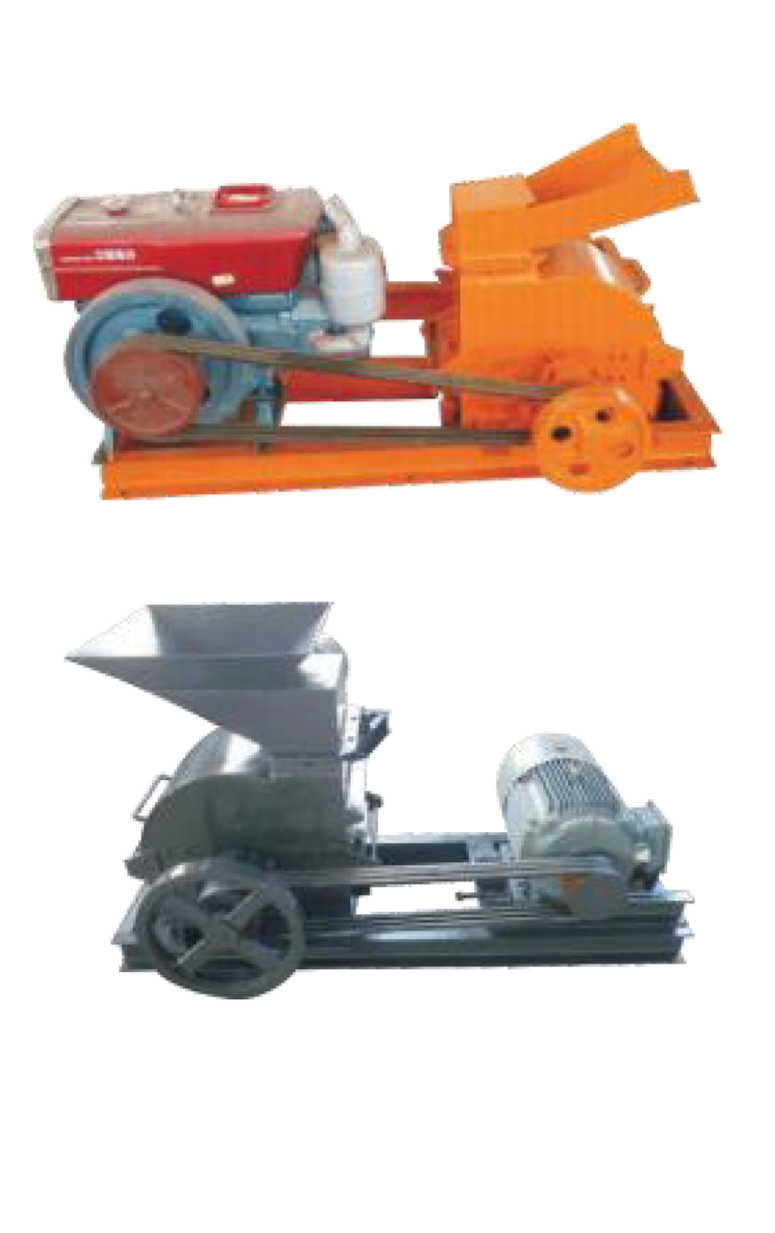

Hammer Crusher

锤式破碎机

Introduction

Hammer mill,as one of the ore crushing equipment,is able to cres below 50mm or tailings and middlings that are not released completely,The released output could be concentrated by shaking table in the next process,Being suitable for small scale nonferrous and perecious metal mines like tungsten,tin,gold,the hanner mill could be the altemative of ball mill in some extent,It is with easy installation and operation,low investment and quick effect,Its sieve opening size,minimum 1mm, can be customize configured as per the actual ore situation.

Technical Parameters
Model Capacity(t/h) Feeding Size(mm) Discharge Size(mm) Driving Equipment Motor(kw) Diesel Engine(hp)
200X500 0.1-0.8 ≤30 1 7.5 24
400X500 0.8-1.5 ≤30 1 11 30
400X600 1-2.5 ≤45 1 18.5 45
500X700 1-3 ≤45 1 22 55
500X800 1.5-4 ≤45 1 40 70
