Introduction

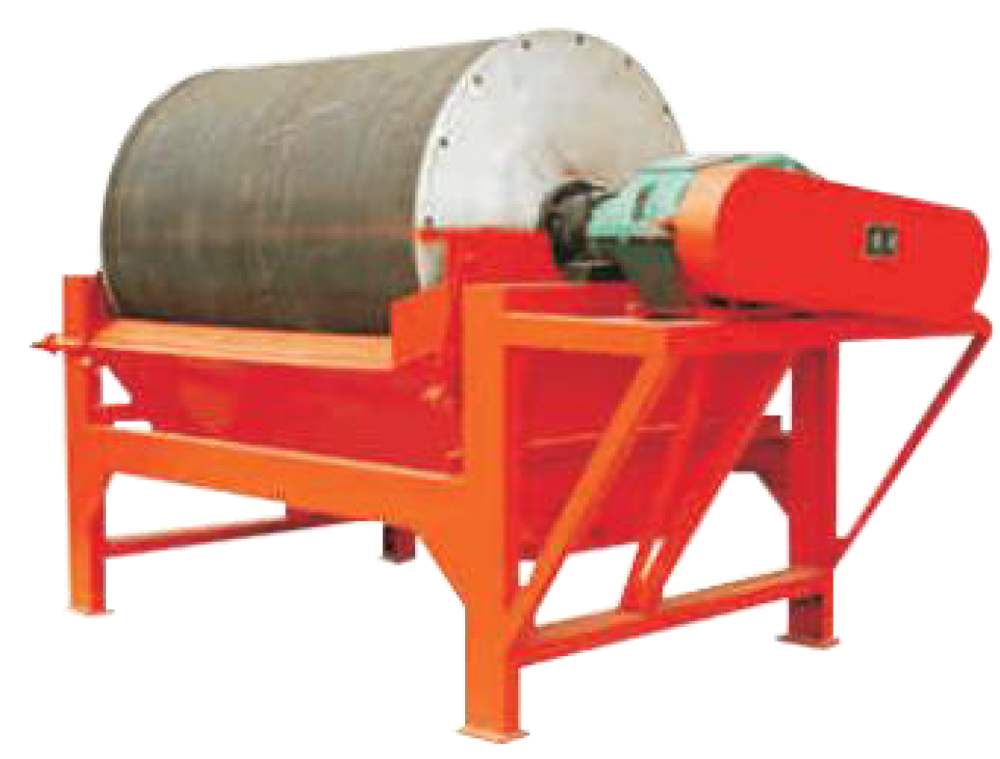

CTG iron sand dry magnetic separator is a newly designed dry separation equipment by our company specially for magnetic lean iron ore lt´s specially applicable for soft ores such as weathered sand ant sand volcanic rock, and so on.Its features: Large separation size range. lt is widely used in 0-60mm sand separation, it will follow the customer request to adjust the concentrate grade from 8-30%High iron sand recovery, it is 20-50% higher than traditional drum magnetic separator capacity will increase 30-60%High magnetic field intensity (maximum 8000GS),even distribution, large penetration depth, strong iron sand adhesive force, long service life.Simple structure ,convenient maintenance.

Technical Parameters
Model	Drum Size (dia*length)mm	Capacity		Motor Power (kw)	Rotation Speed (r/min)	Total weight(kg)	Remarks
Model	Drum Size (dia*length)mm	t/d	m/d	Motor Power (kw)	Rotation Speed (r/min)	Total weight(kg)	Remarks
	750*2200	4000	2500	3	40	1300	Permanent Magnetic
	750*2600	4000	3000	4	35	1500
	900*2200	4000	3000	4	38	1600
	900*2600	4000	3500	5.5	28	1900
	1050*2400	4000	3500	7.5	28	2200
	1050*3000	4000	4000	11	22	2600
	1200*3000	4000	4200	11	22	3000
240	1200*4000	4000	5000	15	22	3800
