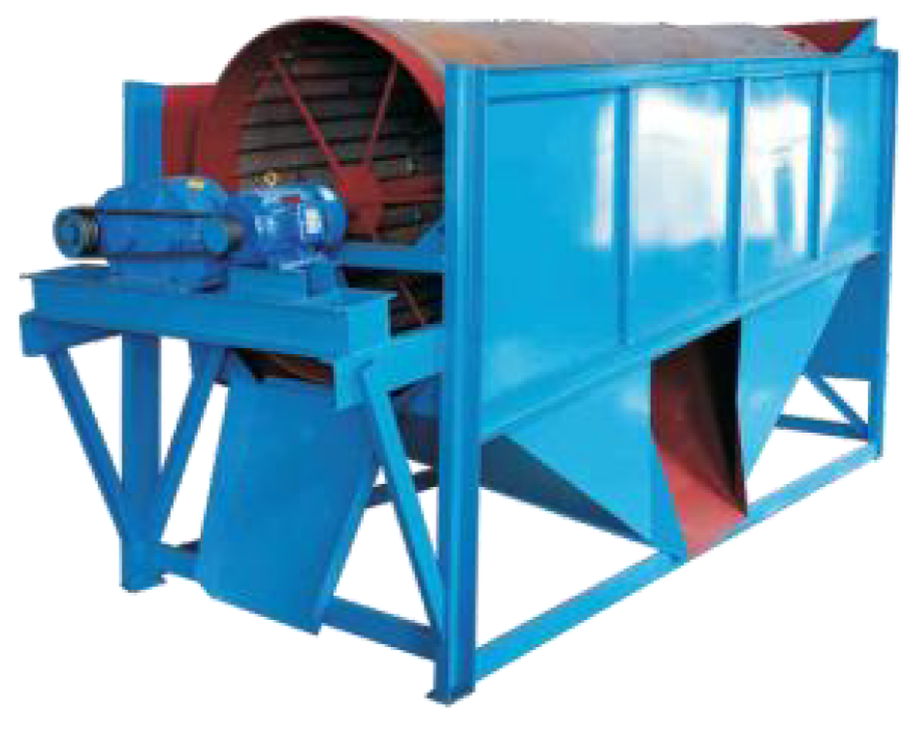

Trommel Screen

滚筒筛

Introduction

The trommel screen can be used not only for wet and dry materials,classificaticn and desliming in industries of mining.coal electric power, construction chemical etc,but also for dewatering of coarse-grained materials.with the upgrading of our GT series trommel screen,it has widely applied in the preliminary classification process of beach resources and alluvial gold mining,as well as in the effective screening and looseness process of the alluvial gold ore with high viscosity day by cooperating with the rotary scrubber or log washer.

Technical Parameters
Model Capacity(t/h) Power(kw) Drun Dia(mm) Drum Length(mm) Sieve Opening Size (mm) Dimension(mm) Weight(kg)
GT1015 50 4 1000 1500 / 3000*1400*2145 2200
GT1020 100 5.5 1000 2000 / 3460*1400*2145 2800
GT1225 160 7.5 1200 2500 / 4146*1600*2680 4200
GT1530 250 11 1500 3000 / 4460*1900*2820 5100
GT1545 350 15 1500 4500 / 5960*1900*3080 6000
GT1848 450 22 1800 4800 / 6500*2300*4000 7500
GT2055 600 30 2000 5500 / 7500*2500*4000 8600
Notes:
1.The parameters are only for reference,GT series trommel screen is usually customized.
2.DOUBLE-LAYER type and MOBILE type are available
