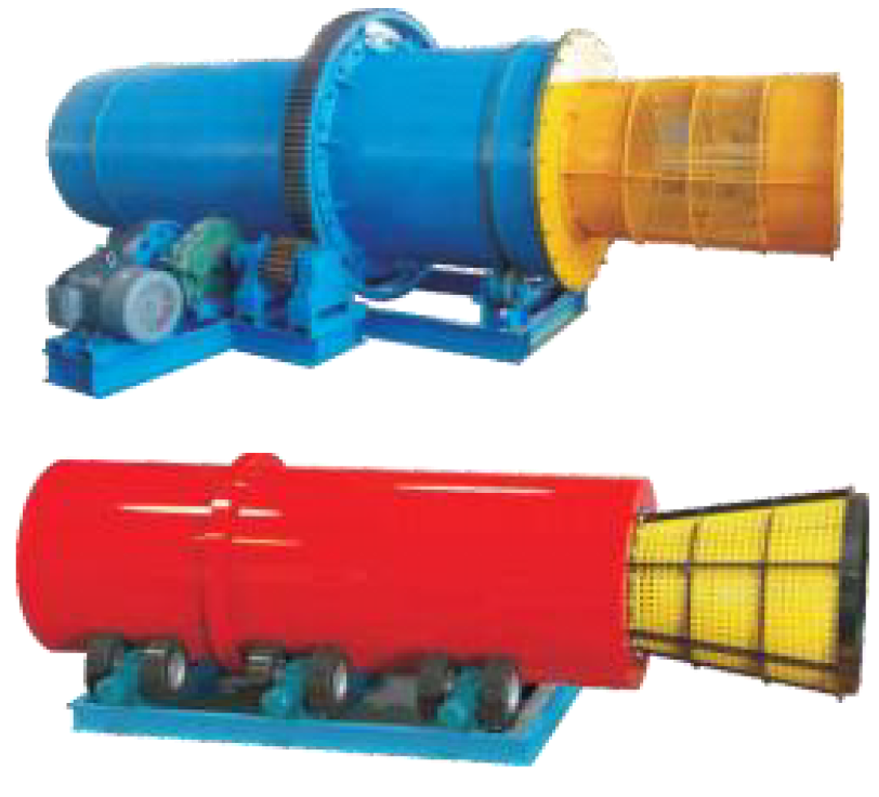

Rotary Scrubber

滚筒洗砂机

Introduction

RXT series rotary scrubber is mainly used for clay minerals washing and desliming so as to improve the dressing performance in the next process.It is widely used not only for manganese ore, iron ore,limestone,tungsten ore,and silica sand,but also for high clay alluvial gold ore. It is able to effectively crush the clay lumps and make the raaw ore to be in complete looseness in the scrubber part,and remove the useless stones at once at the end screening part,and thus effectively increase the high clay gold recovery rate.

Technical Parameters
Model Drum Size (mm) Screen Size (mm) Rotating Speed(r/min) Feeding Size(mm) Circulating Water(t/h) Water Consumption(㎡/h) inclination(°) Capacity(t/h) Power(kw) Weight(t)
RXT1030 / ≤20 27.9 ≤80 20-30 1 ≤10 40 15 3.8
RXT1136 / ≤25 27.6 ≤80 32-50 1.2 ≤10 65 15 4.6
RXT1230 / ≤25 27.6 ≤100 35-60 2.3 ≤10 70 22 4.7
RXT1430 / ≤25 27.6 ≤100 40-70 2.5 ≤10 80 22 4.9
RXT1545 / ≤25 21 ≤160 60-110 2.7 ≤10 120 30 6.9
RXT2265 2200X6500 ≤50 19 ≤230 90-150 2.8 ≤10 180 37 15.9
