Water Pump

清水泵

Introduction

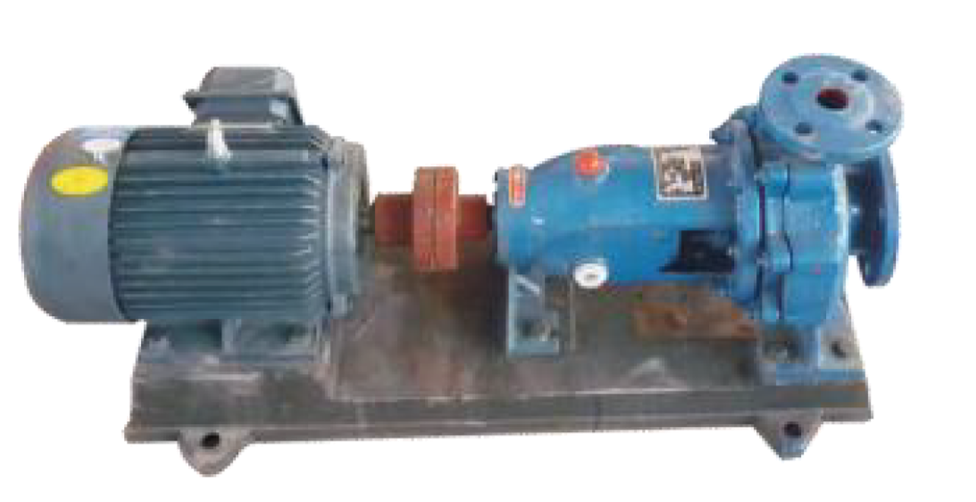

IS series water pump, the single stage & suction centrifugal pump, is used to deliver ＜ 80C clean water or other liquids whose physical and chemical property is similar to water. lt's widely applied in mining, chemical industry, urban water supply and drainage, and agricultural imgation and drainage.

Notes:Only a part of water pump models are included,Pls contact us for more details Multistage water pump is not included,Pls contact us for more details

Technical Parameters
Model Rotation Speed (r/min) Flow Rate Lift (m) Effciency (%) Power NPSHR(m)
m/h l/s  Axial Power (kw) Motor Power(kw)
IS(R)50-32-160 2900 7.5 2.08 34.3 44 1.59 3 2
IS(R)50-32-200 2900 7.5 2.08 52.5 38 2.82 5.5 2
IS(R)65-50-125 2900 15 4.17 21.8 58 1.54 3 2
IS(R)65-50-160 2900 15 4.17 35 54 2.65 5.5 2
IS(R)65-50-200 2900 15 4.17 53 49 4.42 7.5 2
IS(R)80-50-125 2900 30 8.33 22.5 64 2.87 5.5 3
IS(R)80-50-160 2900 30 8.33 36 61 4.82 7.5 2.5
IS(R)80-50-200 2900 30 8.33 53 55 7.87 15 2.5
IS(R)100-80-125 2900 60 16.7 24 69 5.86 11 4
IS(R)100-80-160 2900 60 16.7 36 70 8.42 15 4
IS(R)100-65-200 2900 60 16.7 54 65 13.6 22 3
IS(R)125-100-200 2900 120 33.3 57.5 67 28 45 4.5
IS(R)125-100-315 2900 120 33.3 132.5 60 72.1 110 4
IS(R)150-125-250 1450 120 33.3 22.5 71 10.4 18.5 3
IS(R)200-150-250 1450 240 66.7 22.6 70 21.1 37 3.6
IS(R)200-150-400 1450 240 66.7 55 74 48.6 90 3
