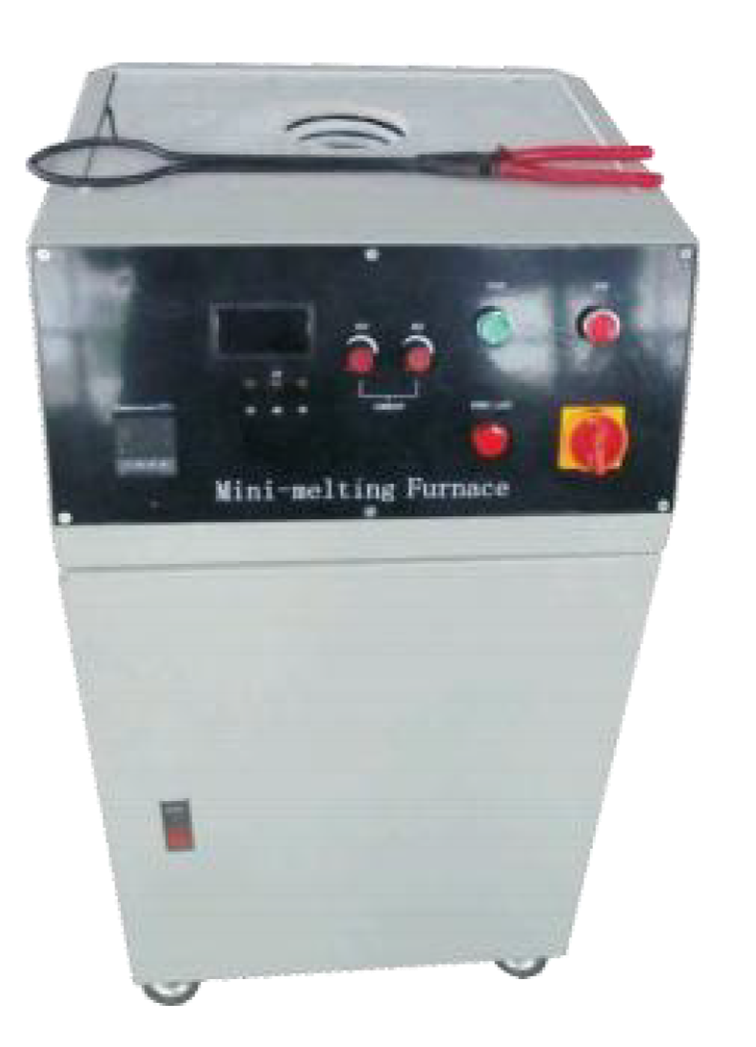

Melting Furnace

3、4层摇床

Categories

1.There are mainly two power source, including high-frequency and medium-frequency electrioity source.

2. From the shape, it could be divided into portable,one-piece, desk, dumping and clamping type.

Application and Workmanship

1.Induction melting fumace could melt, refine, cast, mould, prill by melting the metal at moment.

2.It' s mainly applied for platinum, Palladium, rhodium, gold, silver, copper, steel, aluminum, activated carbon gold ash, alluvial goid, electrolytic slim, gold and sifver powder, tin ash and tin slag and so on.

3. Melting contents range from lg to 100kg. lts melting time ranges from 2-40 minutes per time And I could reach 1500-2000 degree.

4. For tin ash and tin slag, the recovery ratio could be up to 97%

Technical Parameters
Model 15A 25A 35AB 45AB 60AB 80AB 100AB 120AB
Power 2kw 5kw 10kw 15kw 20kw 30kw 45kw 70kw
Power Source 220V 380V 380V 380V 380V 380V 380V 380V
High-Frequenc 30-50khz
Medium Frequency 1-15khz
Weight 15KG 25KG 35KG 70KG 70KG 90KG 120KG 150KG
Capacity 1-2kg 1-4kg 1-8kg 1-15kg 1-25kg 1-40kg 1-50kg 1-100kg
Duration ≤5min ≤5min ≤10min ≤15min ≤20min ≤30min ≤40min ≤40min
