Sand washing machine

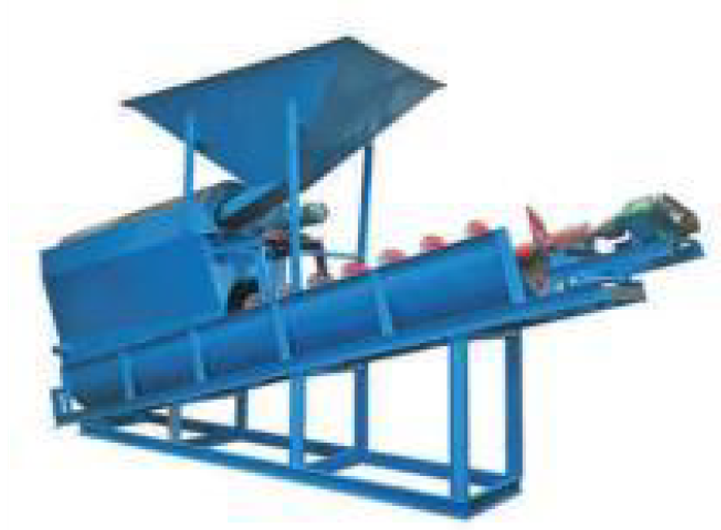

筛沙洗砂一体机

Introduction

When the screw screen washing maching is working,the processsd materials are first put into the bucket drum sand washing device.After screening in the drum device,the qualified materials in two kinds of material barrels with different particle sizes are directly sent to the belt for transportation.The screened materials enter the middle water storage tank,and the qualified materials enter the back-end dehydration device for dehydration after cleaning and screening by the screw blades,In the water storage tank,it is pumped into the separation and wecovery unit by the high,pressure water pump,and after centrifugation and concentration,the feasible material plate is seht to the dedydration unit for dehysration treatment.Waste water and impurities are discharged into the return water tank through the separation and recovery device.

Technical Parameters
Model Spiral Diameter(mm) Rotating Speed(r/min) Capacity Motor Power Weight/t
Sand return
t/24		 Overflow
t/s		 Lifting/kw Transmission/kw
FG-50 ф500 8.5-15.5 143-261 32 2.2 1.1 2.8
FG-75 ф750 4.5-9.9 256-564 65 2.2 3 3.9
Application
1.Vibrating screen using polyurethane screen than other types of screen life longer,and will not plug holes.
2.The fine particles are fully recovered,the workload of the sedimentation tank is reduced,and the cleaning cost of the sedimentation tank is reduced.
3.The polyurethane linling of the traveling current improves the service life of the whole device,and the slurry concentration and liquid clarification can be successfully completed.
4.85% of the total amount of fine particulate materials in the maximum recoverable discharge has incomparable technical and managerial advantages compared with other equipment.
5.Reduce the stacking time of fine materials,which can be transported directly to supply the market.
