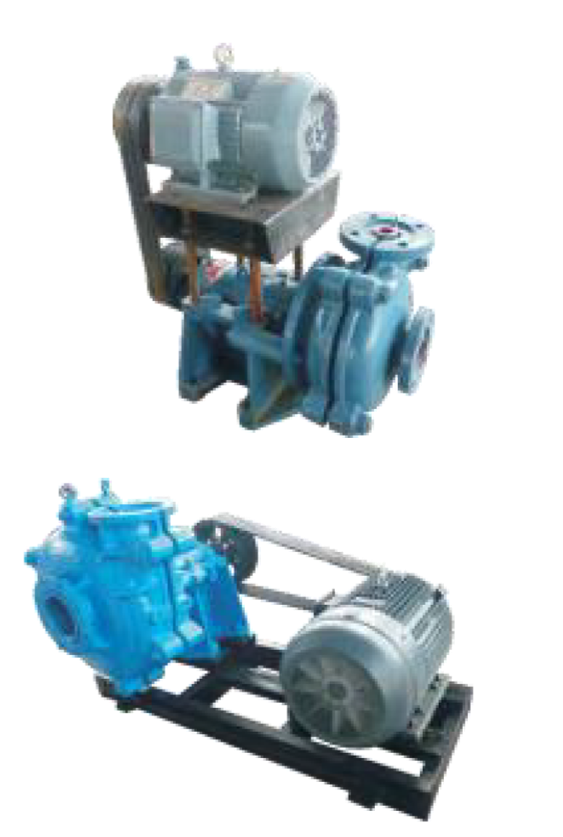

Horizontal Centrifugal Slurry Pump

3、4层摇床

Introduction

Principle of AH horizontal centrifugal slurry pump is the same to Warman slurry pump. This pump is applied in industry oftransporting intensity, abrasion, corrosion, high concentrations of liquid, like metallurgy. mining, coal, electricity and building materials industries. Slurry pump series could be taken used in mulistage series According to the different nature of the ore, high-chromium alloy, corrosion resisting rubber, and stainless steel material lining could be increased.

Notes: Only parts of the pumps have been shown in the parameter Call us for more information

Technical Parameters
Model Capacity (m/h) Head (m) Rotating Speed(r/min) NPSH(m) Effciency (%) Power (kw) Mating Motor Weight(kg) Overall Dimensions L*W*H(mm) Dia of pump(mm)
Power(kw) Specif Inlet Outlet
1.5/1B-AH(R) 3.6
7.56
11.52		 7
6
5		 1200 3.2 20
30
30 		0.34
0.41
0.52		 2.2
1.5		 Y1006-4 90 583*362*368 38 25
1.5/1C-HH 5.04
10.08
15.12		 37.4
37
36.2 		1400 10
18
25		 5.2
5.7
6		 7.5
11
15		 Y132M-4
Y160M-4
Y160L-4		 318 759*540*508 38 25
2/1.5B-AH(R) 7.2
14.4
21.6		 8.5
8
7		 1200 3 18
25
35		 0.93
1.25
1.18		 1.5
2.2		 Y90L-4
Y100L-4		 104 592*41*381 51 38
3/2C-AH(R) 21.6
32.4
42.48		 14.5
14
13		 1300 3 45
52
56		 1.9
2.38
2.69		 4
5.5		 Y112M-4
Y132S-4		 191 768*476*464 76 51
3/2D-HH 18
45
72		 29
30
28 		850 3 20
38
45 		7.1
9.7
12.2		 15
18.5
22		 Y180L-6
Y180M-4
Y180L-4		 750 986*768*698 76 51
4/3C-AH(R) 36
75.6
115.92		 15.9
14.7
12.2		 1200 2.7 50
68
68		 3.12
4.45
5.66		 7.5
11		 Y132M-4
Y160M-4		 263 843*584*516 102 76
4/3D-AH(R) 28.8
68.4
108		 11
10.1
7.6		 1000 2.2 50
69
65		 1.73
2.73
3.44		 5.5
7.5		 Y132S-4
Y132M-4		 363 943*584*592 102 76
4/3E-HH 43.2
90
136.8		 32.5
31.5
29.7		 800 1.5
1.8
2.7		 27
40
46		 14.2
19.3
24.1		 30
45
18.5		 Y225M-6
Y280S-6
Y200L-6		 1250 1240*984*889 102 76
6/4D-AH(R) 72
133.2
194.4 		16
14.6
12.6		 800 3 50
65
68		 6.27
8.15
9.81		 15
18.5
22		 Y160L-4
Y180M-4
Y180L-4		 626 1021*812*668 152 102
6/4E-AH(R) 93.6
172.8
252.0		 27.00
25.00
21.70		 1050 3
3.1
4		 50
65
68 		13.76
18.1
11.9		 22
30
37		 Y180L-4
Y200L-4
Y225S-4		 728 1178*812*795 152 102
6/4F-HH(R) 144
234
325		 63
62.5
61		 800 2
2.2
2.8		 40
52
60		 90
110
132		 Y35M-6
Y35M-6
Y35M-6		 3430 1560*1210*1160 150 100
8/6E-AH(R) 126
255
324		 12
11.4
10		 500 2 51
66
72		 8.1
10.6
12.3		 22
18.5
30		 Y225M-8
Y225S-8
Y250M-8		 1473 1302*1102*917 203 152
8/6R-AH（R） 229.3
230.432
653		 46.1
44
38.9		 980 2
4
6.5		 50
68
72		 57.6
78.5
93.5		 130
132
155		 JS125-6
Y315M-6
JS126-6		 1655 1360*1102*810 203 152
10/8R-M（R） 450
900
1324.8		 63.8
57.1
49.2		 1100 4
7.6
13.2		 50
67
73		 156.4
208.9
243.2		 240
215		 1836 1395*1226*927 254 203
12/10ST-AH 594
1044
1497.6		 46.6
43.5
38.3		 675 2.8
4
6.2		 60
76
80		 125.64
162.73
195.25		 250
280		 4318 1816*1510*1324 305 254
6S-H 288
478.8
666		 95
74
90.6		 1000 3.5
6.5
11		 45
59
65		 165.6
20707
252.8		 310
380		 JS148-6
JS1410-6
6KW		 3450 1560*1210*1160 152 152
