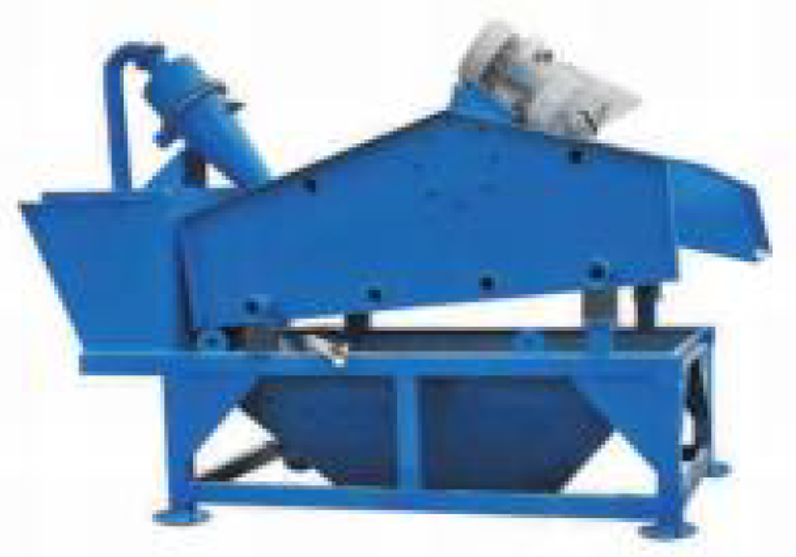

Fine sand Reclaimer

细砂回收机

Introduction

Fine sand recycling machine is also called fine sand collector,fine sand extractor ,tailings dry drain machine,fine sand recovery device,fine sand recovery equipment.

The main function of the tailings recovery machine is to clean,dehydrate and classify the sand and gravdl.It can recover a lot of fine sand from the sand washing machine in the traditional sand making industry,improve the economic benefit,reduce the treatrnent cost of the tailings and the pollution and darnage caused by the loss of fine sand environment.

Technical Parameters
Model Water pump Senarator sperification(mm) Dharated cieor Processing quantity(m³/h） Weight(kg)
Power(kw) Material Material Power (kW)
LZ250 7.5-11 CR26 250 PU 2X0.55 30-80 2050
LZ300 11-15 CR26 300 PU 2X0.75 40-100 2200
LZ350 15 CR26 350 PU 2X0.75 70-130 2555
LZ550 15-22 CR26 550 PU 2X1.1 100-220 3250
LZ650 18.5-30 CR26 650 PU 2X1.1 120-272 3945
LZ750 37-55 CR26 750 PU 2X1.5 180-350 4900
LZ900 55-65 CR26 900 PU 2X2.2 250-500 5650
LZ1200 60-74 CR26 1200 PU 2X2.2 500-650 6750
Application
1.Vibrating screen using polyurethane screen than other types of screen life longer,and will not plug holes.
2.The fine particles are fully recovered,the workload of the sedimentation tank is reduced,and the cleaning cost of the sedimentation tank is reduced.
3.The polyurethane linling of the traveling current improves the service life of the whole device,and the slurry concentration and liquid clarification can be successfully completed.
4.85% of the total amount of fine particulate materials in the maximum recoverable discharge has incomparable technical and managerial advantages compared with other equipment.
5.Reduce the stacking time of fine materials,which can be transported directly to supply the market.
