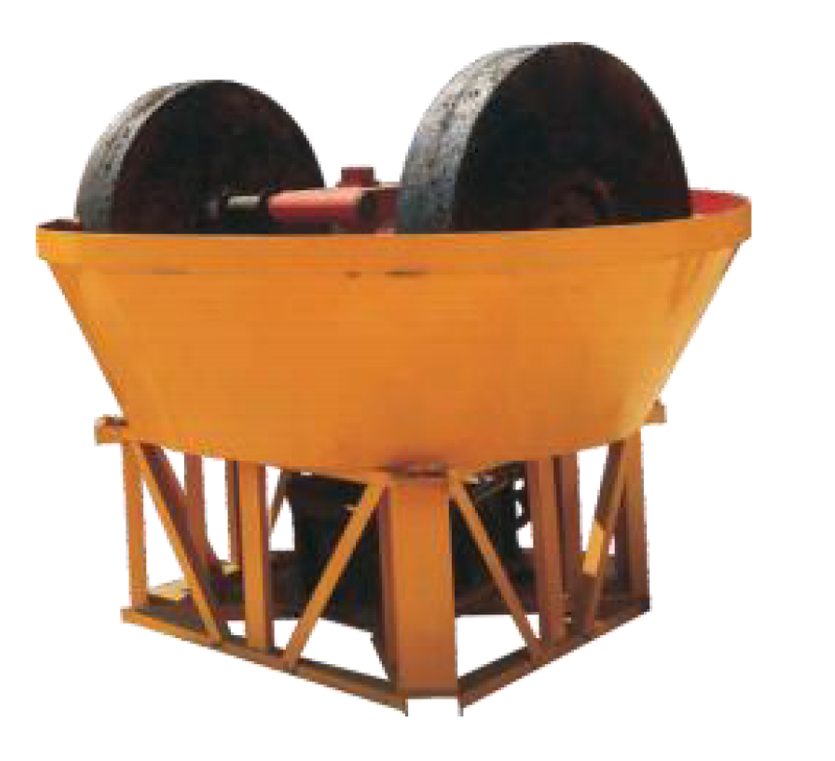

Gold Grinding Machine

碾金机

Introduction

Gold grinding machine is mainly working for preliminary grinding for gold,silver,lead,zinc,iron, moiybdenum,copper,antimory ore concentration,but also one of the main replaced equipment of ball mill,The device is suitabie in small-scale mining.transportation inconvenience,lack of electricity supply in remote mine.It´s with simple installation,lower investment,high output,lower production costs and fast grinding speed and so on.

Technical Parameters
Model Grinding Roller Diameter(mm) Grinding Roller Thickness(mm) Grinding Plate Diameter(mm) Roller Plate Thickness(mm) Grinding Plate Groove Width(mm) Grinding Plate Speed (r/min) Power(kw) Capacity (t/h) Weight(t)
WKD-1600 1600±20 400±20 2100±20 180±30 500 20-22 30 9-10 16
WKD-1500 1500±20 300±20
350±20
400±20
 2000±20
2100±20		 150±30
180±30		 450 20-22 22 7-8 12
WKD-1400 1400±20 250±20 2000±20 150±20 360 16-18 15 5-6 9.5
WKD-1300 1300±20 250±20 2000±20 150±20 360 16-18 11 3-4 8
WKD-1200Ⅰ 1200±20 220±20 1800±20 100±20 270 13-18 7.5 1-2 6
WKD-1200Ⅱ 1200±20 200±20 1800±20 100±20 250 13-18 7.5 0.8-1 5
WKD-1100 1100±20 200±20 1800±20 80±20 250 13-18 5.5 0.5-0.8 4.5
WKD-1000 1000±20 200±20 1800±20 80±20 250 13-18 5.5 0.3-0.5 4
WKD-900 900±20 160±20 2100±20 50±20 200 13-18 3 0.2-0.3 3
WKD-850 850±20 140±20 2100±20 50±20 180 13-18 3 0.1-0.2 2.5
