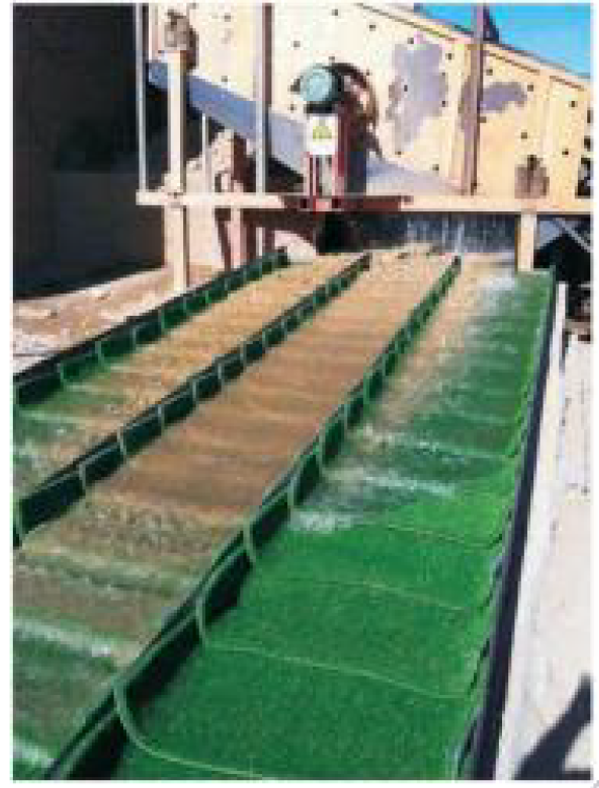

Carpet Sluice Box

粘金溜槽

Introduction

Sluice box is one of the most popular equipment for gold mining,which consist the steel structure and capet Sluice box is normally used in gold washing plant it s been wildly used to recovery the placer gold directly together with trammel screen

Technical Parameters
Model Dimension Capacity Feeding size Slurry density Water required Power Frequency Recovery inclination Cleaning Up Cycle Weight
FGS12 3200/1200/730mm 20-25m³/h ＜20mm 30% 40-50m³/h 1.1kw 28-30r/min 90% 6°-7° 4h 750kg
FGS15 4000/1500/730mm 30-35m³/h ＜20mm 30% 60-80m³/h 2.2kw 28-30r/min 90% 6°-7° 4h 1100kg
